HSDJETS 59inch Trainer Titanium A
Current location:Home > Electric AirplanesHSDJETS 59inch Trainer Titanium A
Current location:Home > Electric Airplanes
SPECIFICATIONS
| Wingspan | 1500mm (59.1in) |
| Length | 1280mm (50.4in) |
| Weight | 1.2 kg / 2.6 ib (w/o battery）, 2.8 Kg / 6.2 ib (w/ battery） |
| Wing area | 34.5 dm2, 534.8 in2 |
| Wing load | 81.2 g/dm2 , 5.2 g/in2 |
| Power System | 5050-500KV brushless outrunner motor |
| Electronic Speed Control | 80A (AS150 type connector) with 5A UBEC |
| Propeller | 15×5.5 2-Blade |
| Servos | 40g×2 metal gear with 300mm lead (left & right ailerons) |
| CG (Center of Gravity) | 85mm from the leading edge of the Main Wing |

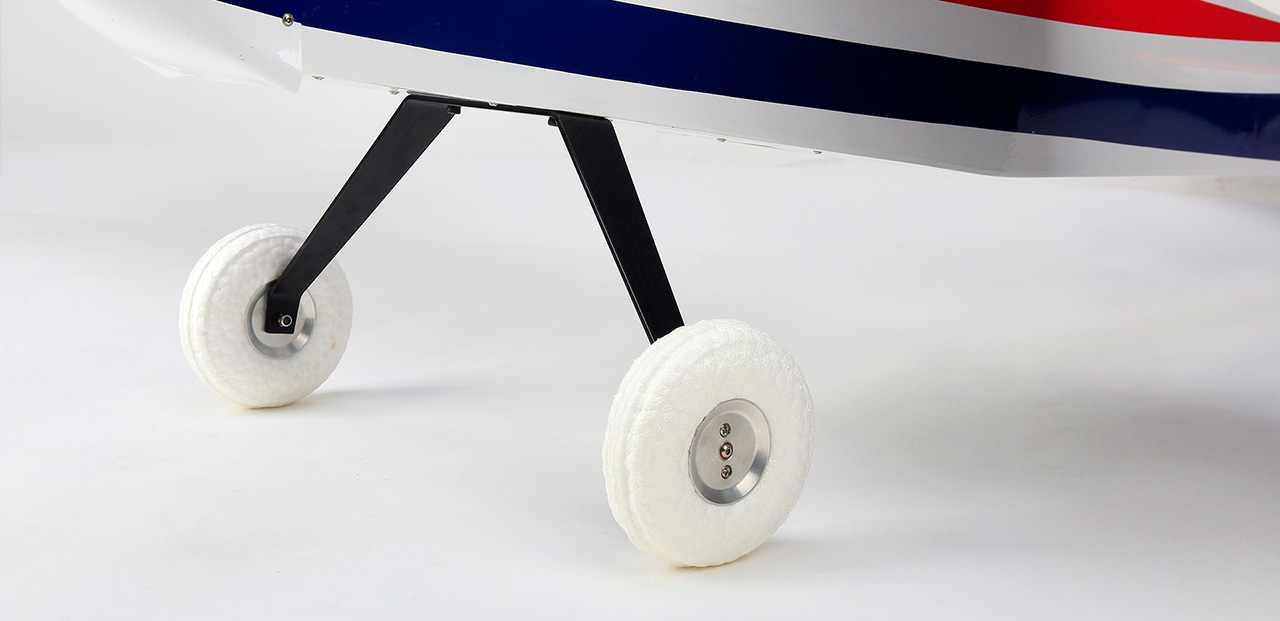

| Landing Gears | E-PTU Tire Aluminium alloy Fixed Landing Gear |
| Radio System | 4 channel (required & not included) |
| Battery | 6S 22.2V 3300mAh 45C LiPo with AS150 type connector (required & not included) |
| Battery Charger | 6S LiPo battery charger (required & not included) |
| Ailerons | Yes |
| Elevator | Yes |
| Rudder | Yes |
| Flaps | No |
| Lights | No |
| Material | Wood, High Quality Covering |
| Skill Level | Beginner |
| Build Time | 1 hours |
REQUIRES:
4+ channel radio system(4CH radio & 6CH receiver) (required & not included)
6S 22.2V 3300mAh 45C LiPo with AS150 type connector (required & not included)
6S LiPo battery charger (required & not included)
